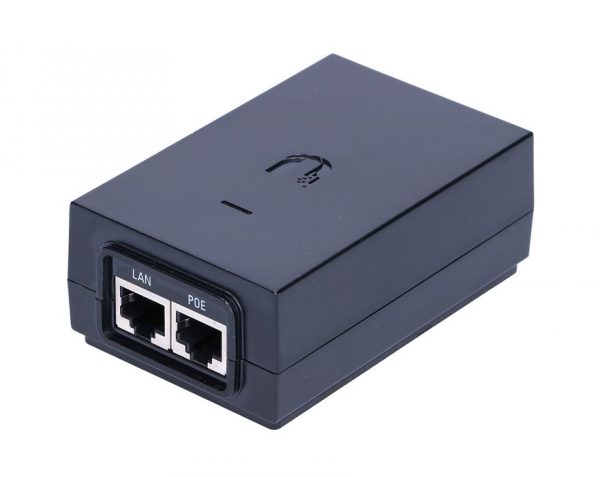

UBIQUITI POE-24-24W-G Gigabit power adapter 24V 24W 1A UPOE-24-24W-G

Ubiquiti POE-24-24W-G Gigabit Power Adapter 24V 24W 1A

PoE Adapters

Model POE-24-24W-G
Dimensions 88 x 57 x 33 mm (3.47 x 2.24 x 1.30 in)
Weight 158.5 g (5.59 oz)
Output Voltage 24VDC @ 1.0A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current <60A Peak @120VAC,<120A Peak @ 230VAC Efficiency 80+% Output Ripple 1% Max. Switching Frequency 65 kHz Line Regulation ± 1% Load Regulation ± 3% 4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) Operating Temperature 0 to 40° C (32 to 104° F) Storage Temperature -30 to 70°C (-22 to 158° F) Operating Humidity 35 to 95% Non-Condensing AC Connector IEC-320 C6 Data IN / POE RJ45 Shielded Socket Surge Protection Difference and Common Mode Clamping Protection 11V Data, 60V Power Max. Surge Discharge 1500A (8/20µS) Power Peak Pulse Current 36A (10/1000µS) Data Shunt Capacitance <5 pf data Response Time <1 nS Compliance IEC 60950-1:2005+A1UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground USA, EU, AR, BR, UL, CCC, Mexico
