– auto power off
– buzzer
– low battery indication
– data hold
-manual backlight
– working temperature: 0°C – 50°C
– 2m drop proof
– protection grade: IP54
– safety certification grade: CAT IV 600V
Technical parameters:
– Max current measurement (AC): 0A – 3000A ±(3%+5)
– Current measurement (AC): 0A – 30.00A ±(3%+5)
– Current measurement (AC): 0.0A – 300.0A ±(3%+5)
– Current measurement (AC): 0A – 3000A ±(3%+5)
– Inrush current measurement: 0A – 3000A (for reference only)
– frequency response: 45Hz – 500Hz (sine wave)
– jaw size: Rogowski flex coil (diameter: 8mm), bending length: 18″ inches (45,7cm); radius: around 3,1″ inches (8cm)

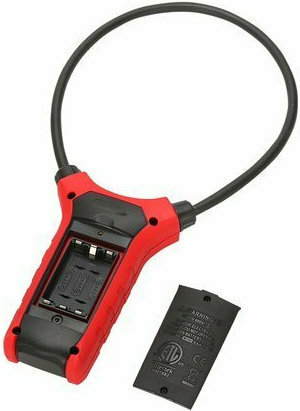

– power supply: AAA 1.5V alkaline battery × 3
– device weight: 220g
– device size: 300 × 150 × 55mm

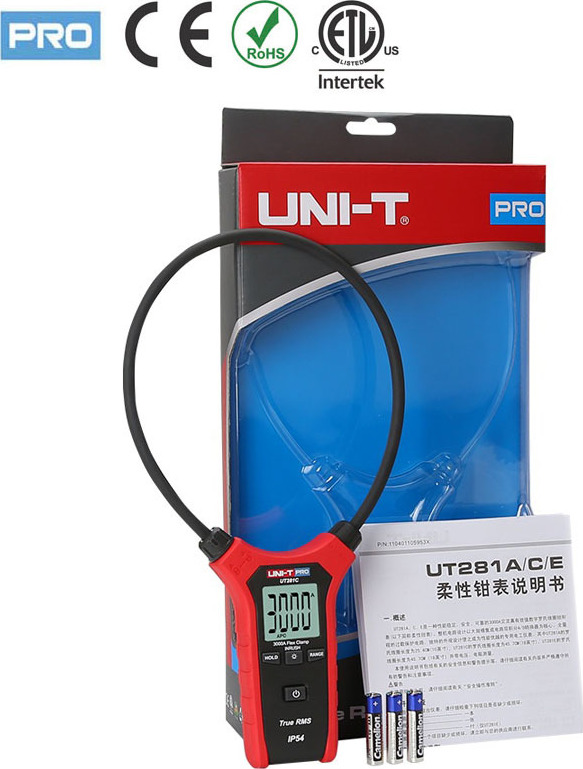

Accessories:
– manual
Manufacturer:
UNI-TREND
